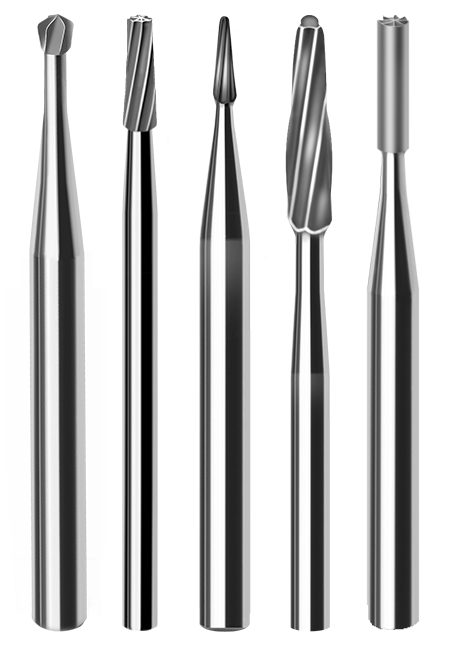

Introducing the range of Alpha Nano Diamond Burs – the world's first commercially launched dental burs with a thin film of nano diamonds grown onto their flutes. This patented global-first technology is the result of years of R&D in Nano-Technology by Piscium, and these burs are CE approved post extensive testing. With their longer lifespan and smooth performance, they create cavities with minimal microleakage, ensuring better patient comfort and improved prognosis. The thin, nano diamond film on these fluted burs enables precise, fast, and accurate cuts. Experience efficient and reliable dental procedures with Alpha Nano Diamond Burs for superior results.
Greater procedural control*
Better heat dissipation
Minimal heat deposition
Better longevity#
7X smoother surface

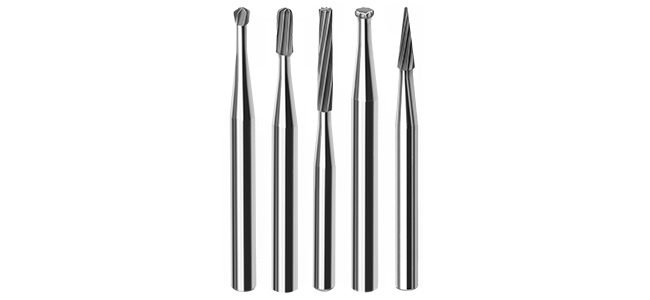

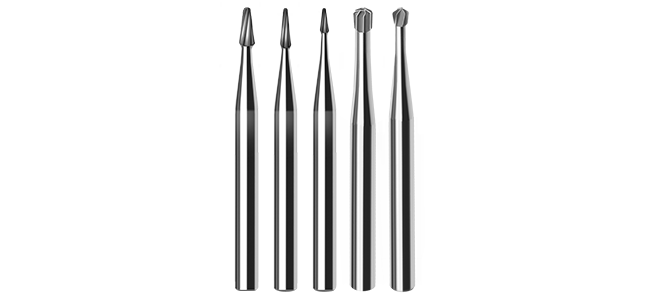

Tooth preparation burs specifically designed to effortlessly and accurately cut in challenging areas. These burs are crafted to minimize the risk of enamel chipping, ensuring optimal patient safety and comfort. With their exceptional cutting capabilities, our Tooth preparation burs allow for swift and precise tooth preparation, streamlining your dental procedures and delivering superior results.

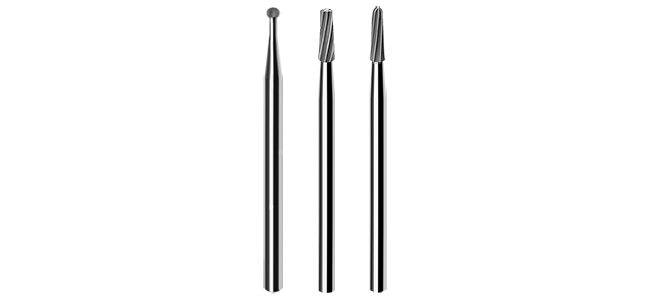

28 mm friction grip surgical burs, designed to provide unparalleled accuracy and smooth cutting performance. These burs offer unmatched precision, allowing for precise and controlled cuts even in procedures on areas that are usually difficult to access. With their superior speed and improved heat dissipation, they ensure optimal performance even during extended use.
Fissurotomy burs, meticulously designed to excel in delicate procedures such as pit and fissure preparations and incisal interproximal reductions. These burs are specifically tailored to provide exceptional precision and control.

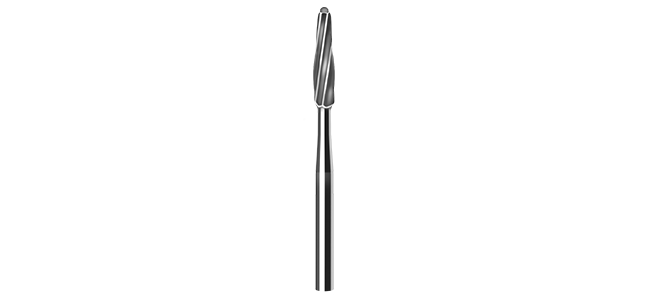

Taper fissure burs with safe tips, designed to enhance endodontic access while prioritizing pulp conservation. These burs feature specially crafted safe tips that allow for precise and controlled access during endodontic procedures, minimizing the risk of pulp damage. With their taper fissure design, they provide optimal efficiency during straight line access and orifice enlargement while maintaining pulp integrity.
Crown and bridge burs, meticulously crafted to deliver exceptional durability and efficiency, while prioritizing patient comfort. These burs are specifically designed for well controlled reductions. With their precise cutting capabilities, they ensure excellent functional morphology and structural durability for dental prosthetics.
Over 55% of dentists who used this bur stated that the Piscium® Alpha Nano Diamond bur scores significantly over their existing choice of burs in terms of procedural control, lesser time taken, lesser pressure required, longevity and overall experience.
Dental burs which can save on time, can create cavities even at delicate pressures and are useable for repeat cavity preparations are indeed good quality and cost-effective burs. Such burs withstand wear, create smooth cavities and thus allow restorations with minimal microleakages.
Source : Comparison of cavity preparation time and pressure, burs longevity, surface roughness of enamel & dentin and cavosurface integrity of composite restorations done after use of nanoengineered CVD Diamond burs versus sintered diamond burs and tungsten carbide burs." Jetpurwala (Department of pediatric and preventive dentistry, Nair Hospital Dental College, Mumbai) et al - Data on file
Piscium® Alpha Nano Diamond bur combines the hardness and penetrability of diamonds with its custom designed tips which offer great raking action. Due to this unique design, Piscium® Alpha Nano diamond bur outperforms competitive burs and achieves accurate and fast cuts.
Raking mechanism

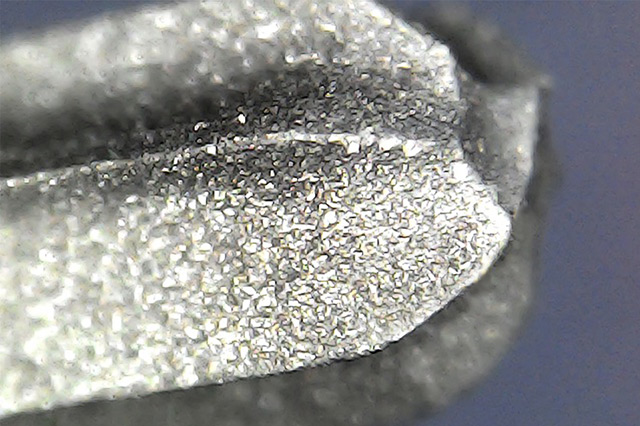

Nano diamonds grown on helical blades of bur
Cavity smoothness of Piscium® Alpha Nano Diamond bur is significantly better than sintered diamond bur even on repeated uses up to 9 cavities

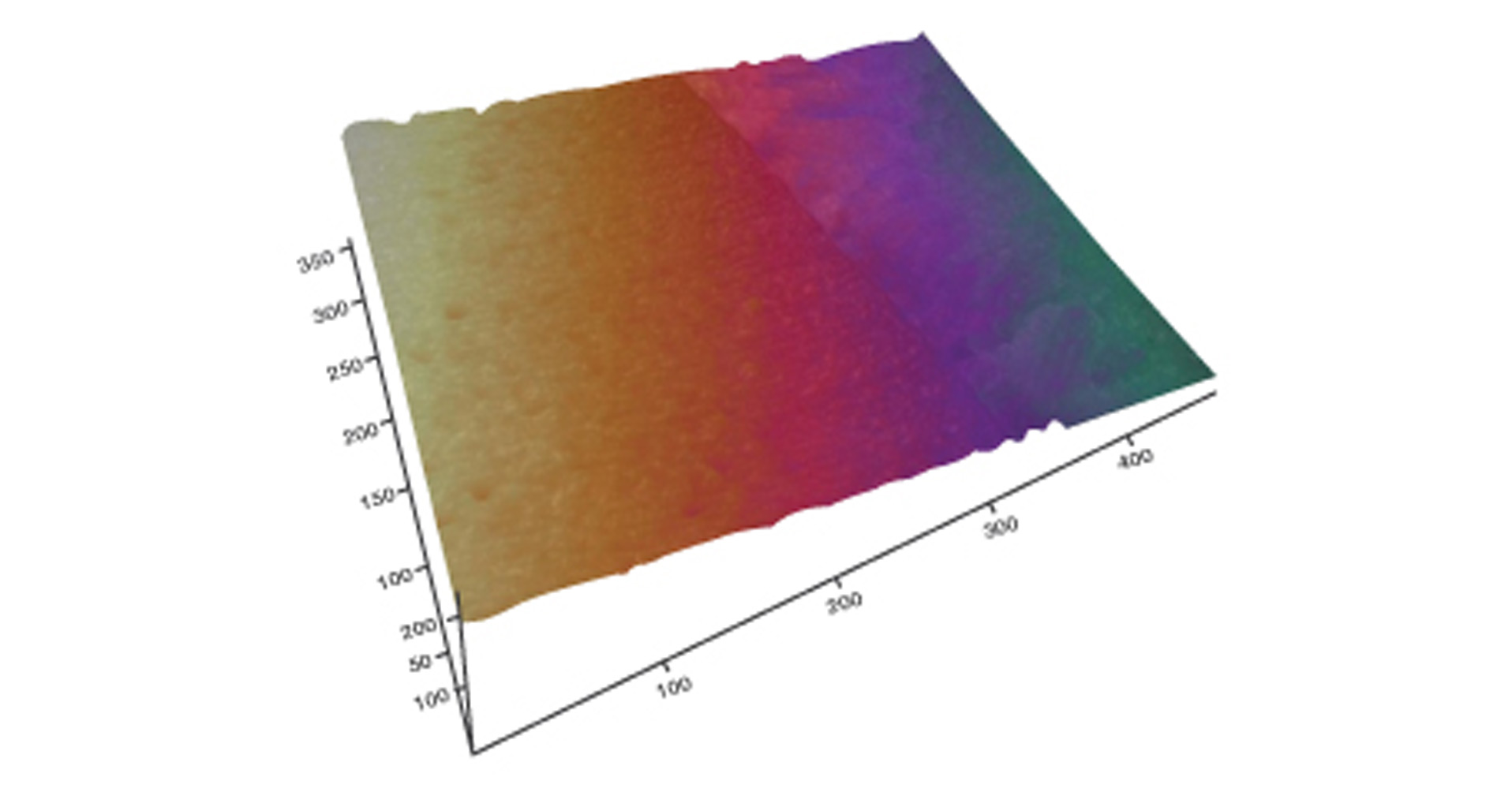

Profile of tooth surface created by Piscium® Alpha Nano Diamond Bur on the 5th repeat use

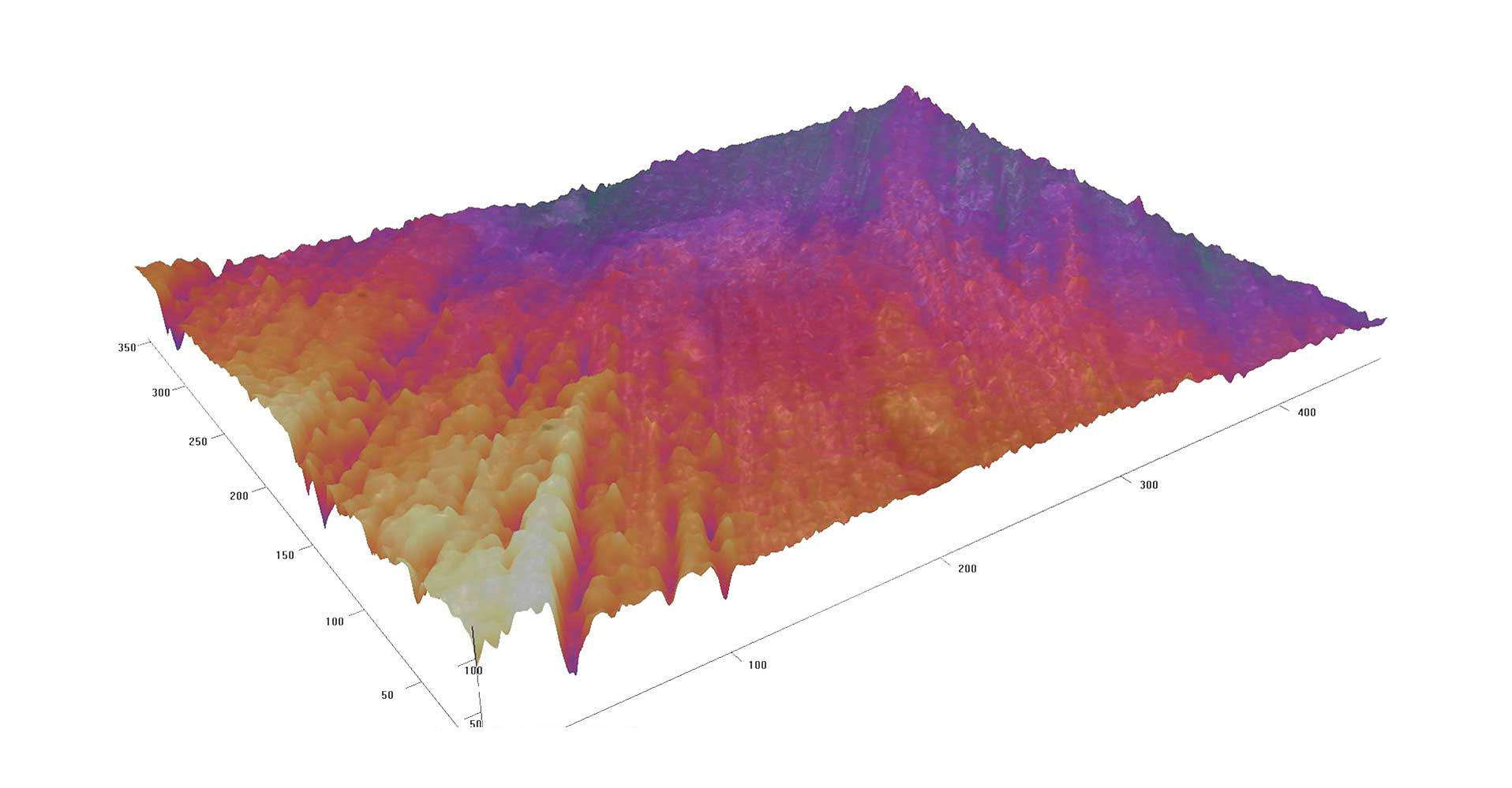

Profile of tooth surface created by Sintered diamond tips on the 5th repeat use
Due to smooth cavities, microleakage in restorations of cavities created using Piscium® Alpha Nano Diamond bur is significantly lesser than those created using leading sintered diamond burs

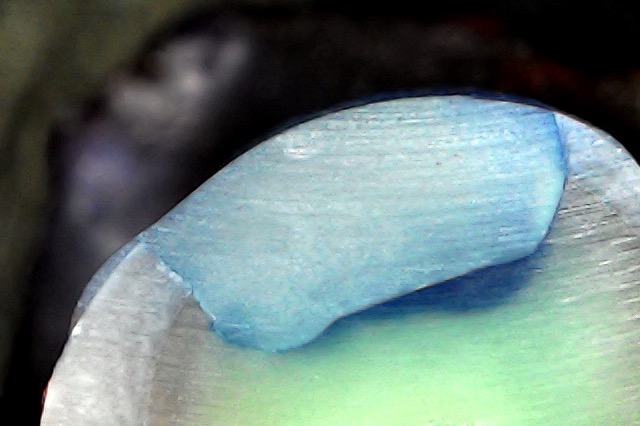

Dye penetration in micro cracks formed in restorations using
Piscium® Alpha Nano Diamond Bur
Dye penetration in micro cracks formed in restorations using
Leading Sintered Diamond Bur
Source : Comparison of cavity preparation time and pressure, bur longevity, surface roughness of enamel & dentin and cavosurface integrity of composite restorations done after use of nanoengineered CVD Diamond burs versus sintered diamond burs and tungsten carbide burs." Jetpurwala (Department of pediatric and preventive dentistry, Nair Hospital Dental College, Mumbai) et al - Data on file

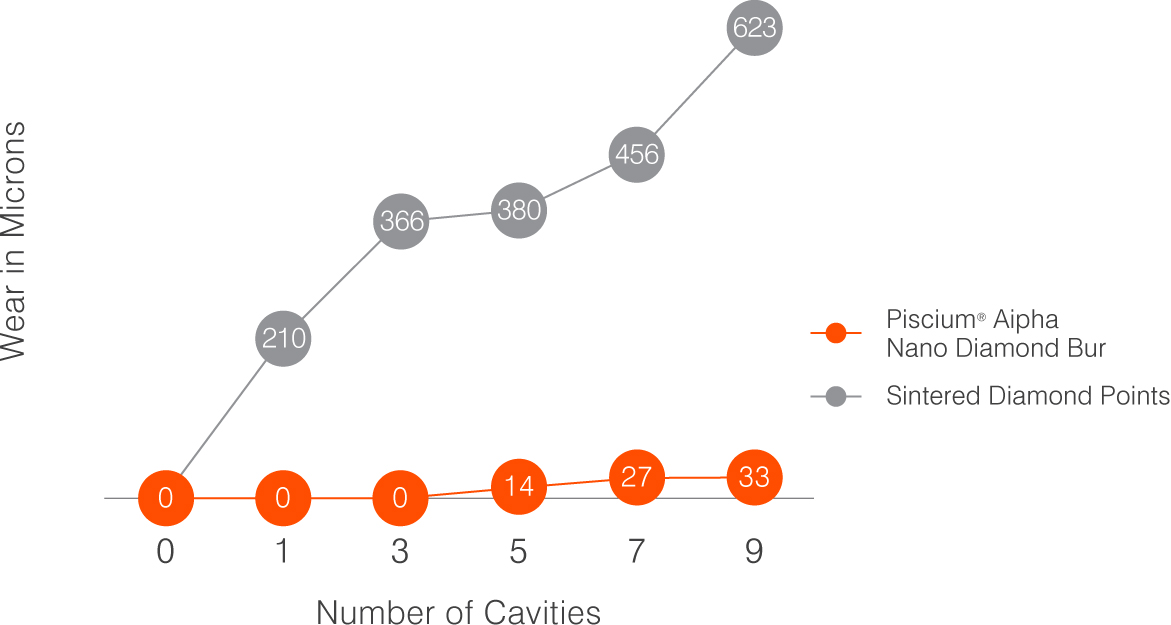

Piscium® Alpha Nano Diamond Bur lasts up to 9 teeth on these parameters versus leading sintered diamond burs which last for 3 teeth.
Sintered Bur
Piscium®
Alpha Nano Diamond Bur
Longevity of the Piscium® Alpha Nano Diamond Bur
comes due to its propriety Nano Diamond Film (Patent applied for).

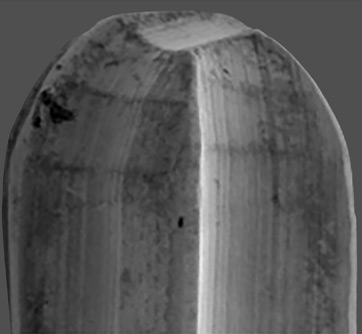

Electron microscope image of Piscium® Alpha Nano Diamond Bur after 5 cavity preparations

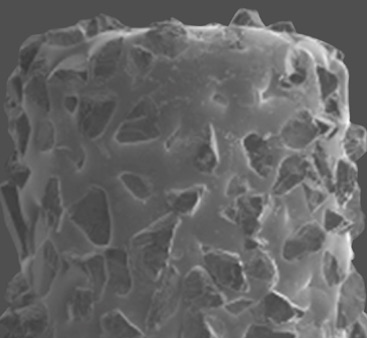

Electron microscope images of leading Sintered Diamond Bur tips
Source : Comparison of cavity preparation time and pressure, bur longevity, surface roughness of enamel & dentin and cavosurface integrity of composite restorations done after use of nanoengineered CVD Diamond burs versus sintered diamond burs and tungsten carbide burs." Jetpurwala (Department of pediatric and preventive dentistry, Nair Hospital Dental College, Mumbai) et al - Data on file
Existing burs blunt easily and unevenly, thus creating cracks and microfractures on the tooth enamel causing multiple painful appointments for patients
Sintered Diamond Points & Raw Tungsten Carbide Bur
Rough cuts
Debris deposition
Raw Tungsten Carbide Bur
Crack propagation
Chipping of enamel
Low coefficient of friction of the nano-diamond film present on Piscium® Alpha Nano Diamond Bur results in minimal debris deposition

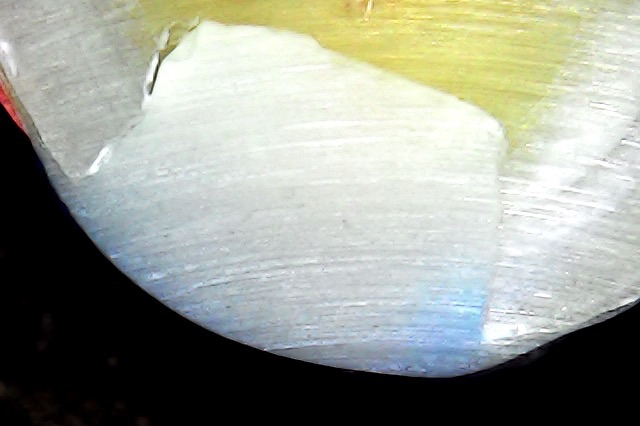

Minimal debris deposition and smooth cuts with no crack propagation
Smooth Cavities of Piscium® Alpha Nano-Diamond burs mean that restorations have minimal microleakages, ultimately providing better patient comfort and prognosis
We ensure each and every bur that comes to you undergoes strict quality checks. Be it dimensional accuracy, concentricity, the quality of the diamond coat and time-pressure requirements on a modern-day dental handpiece.
Our R&D is recognized by Department of Scientific and Industrial Research – Govt. of India and our process is ISO 13485:2016 certified.

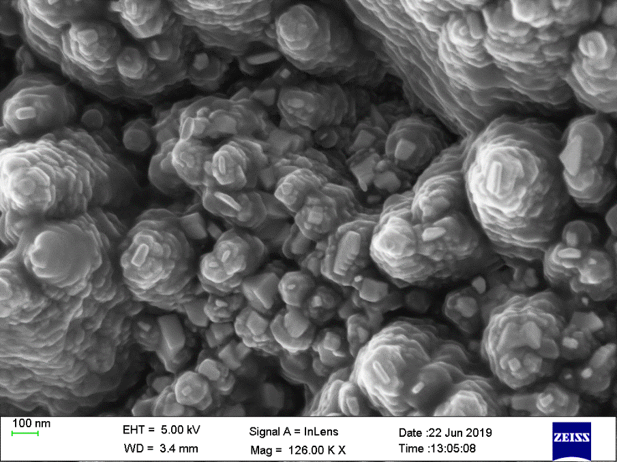

Uniform and adherent nano crystalline diamond coating
Raman spectrum of nano crystalline diamonds on Piscium® Alpha Nano Diamond bur
Instrument head diameter (1/10 mm) | Maximum permissible speed (RPM) | Recommended operational speed (RPM) |
---|---|---|
007 - 010 | 450,000 | 100,000 - 220,000 |
011 - 014 | 450,000 | 70,000 - 220,000 |
015 - 018 | 450,000 | 55,000 - 160,000 |
019 - 023 | 300,000 | 40,000 - 120,000 |
024- 027 | 160,000 | 35,000 - 110,000 |
028 - 031 | 140,000 | 30,000 - 95,000 |
032 - 040 | 120,000 | 25,000 - 75,000 |
041 - 054 | 95,000 | 15,000 - 60,000 |
055 | 60,000 | 12,000 - 40,000 |
Smith | Smith | Smith |
Manual Cleaning
Automated Cleaning
In-Clinic Sterilisation
*Over 55% of dentists who used this bur stated that the Piscium® Alpha Nano Diamond bur scores significantly over their existing choice of burs in terms of procedural control.
#Piscium® Alpha Nano Diamond Bur lasts up to 9 teeth versus leading sintered diamond burs which last for 3 teeth.
